Sealproof® Conduit and Connectors · Non-Metallic Liquid Tight Connectors
Multi-Angle Liquid Tight Connector, 3/4" — Gray
Part no.
8620
UPC 658746886206 Carton 100 pcs - cULus Listed · E197675
- Liquid-tight · for LFNC-B conduit
A 3/4-inch multi-angle non-metallic liquid-tight connector — terminates Type B liquid-tight flexible conduit (LFNC-B) into a box or enclosure, and swivels to any angle before it is tightened.
- Trade size
- 3/4"
- Type
- Multi-angle connector
- For
- Non-metallic liquid-tight flexible conduit, Type B
- Material
- Nylon 6 — multi-piece; resists salt water, oil and sunlight
- Colour
- Gray
- Listing
- cULus Listed, file E197675
- Pack
- 100 per carton
Features
- Listed under the Underwriter's Laboratories
- Available in 1/2 inch and 3/4 inch sizes
- All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents
- No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, tightening the domed sealing nut. The completed assembly can then be secured in the chassis by the locknut
- Standard color - Black or Gray
- Eliminate inventory, as the swivel design can be substitued for a Straight or 90° connector
- Molded of type nylon 6. Flammability classification 94V-2: temperature index 125°C
- "0" Ring and steel locknut included
Specifications
- Part number
- 8620
- UPC / GTIN-12
- 658746886206
- Trade size
- 3/4"
- Colour / finish
- Gray
- Listing
- cULus Listed, file E197675 verify at UL Product iQ ↗
- Material
- Nylon 6
- Carton quantity
- 100
- Brand
- Sealproof — a Superflex Ltd. brand

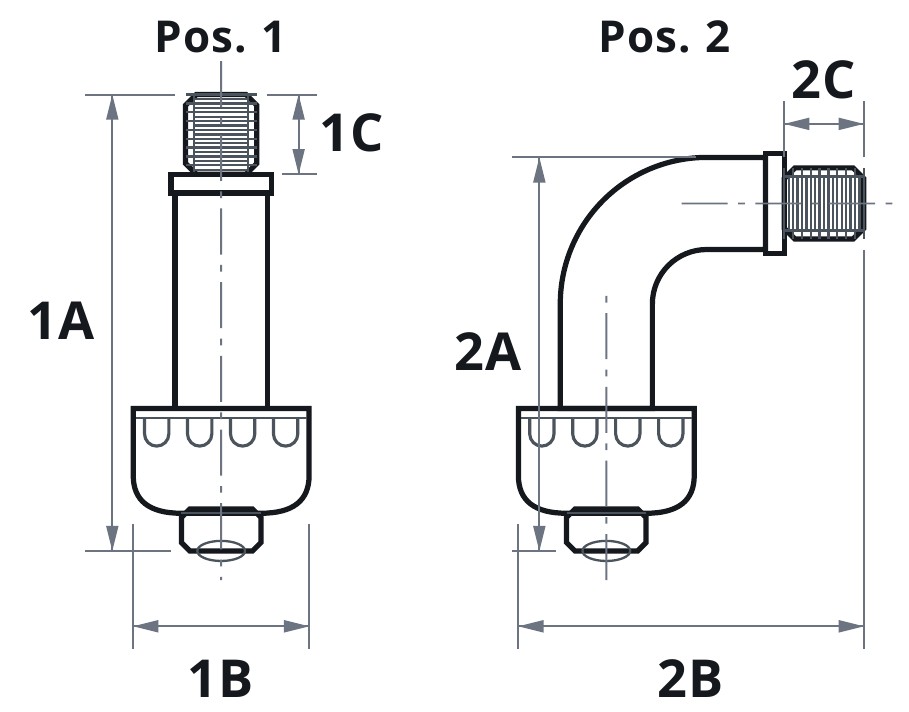

Dimensions
| 1A / 2A — overall height | 4.300 / 3.850 in |
|---|---|
| 1B / 2B — overall width | 2.650 / 3.350 in |
| 1C / 2C — thread length | 0.520 / 0.520 in |
1A / 2A overall height · 1B / 2B overall width · 1C / 2C thread length, in the two hub positions shown. Nominal, in inches.
