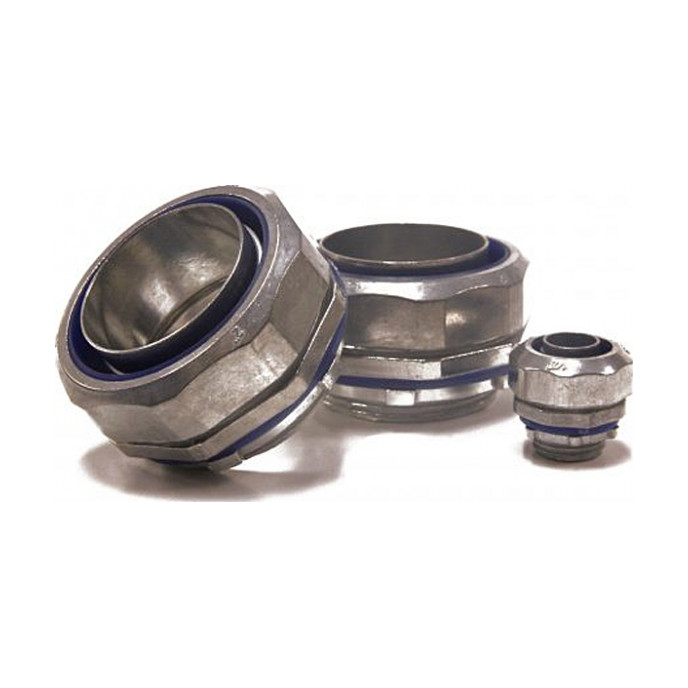

Family image shown — colour and finish may differ. Part photo coming soon.
Sealproof® Conduit and Connectors · Zinc Die Cast Liquid Tight Connectors
Straight Zinc Die Cast Connector, 2-1/2"
Part no.
8729
UPC 658746887296 Carton 5 pcs - cULus Listed · E197675
- Liquid-tight · metallic & non-metallic conduit
A 2-1/2-inch straight zinc die-cast liquid-tight connector — terminates metallic or non-metallic Type B liquid-tight flexible conduit into a box or enclosure, with a sealing gland and gasket.
- Trade size
- 2-1/2"
- Type
- Straight connector
- For
- Metallic (LFMC) and non-metallic Type B liquid-tight conduit
- Material
- Zinc die-cast
- Listing
- cULus Listed, file E197675
- Pack
- 5 per carton
Request a quote
Questions? 1-800-394-3665 · sales@superflex.com
Downloads & documents
Features
- Available 3/8" through 4"
- For use with both Metallic Liquid Tight Conduit and Nonmetalic Liquid Tight Type B
- Zinc die cast construction resists salt water, weak acids, gasoline, alcohol, oil, grease, & common solvents
- Resistant to outdoor weather conditions
- No disassembly required. Instead, the installer simply twists the conduit or tubing onto the ferrule, tightening the domed sealing nut. The completed assembly can then be secured in the chassis by the locknut
- No threading of the conduit or tubing required to install, eliminating the possibility of cutting the conduit & creating leak paths
- Complete conduit/connector system is reusable. Conduit will not wind tight onto the connector during assembly & can be easily removed by pulling while turning clockwise
- Suitable for indoor/outdoor use; for original equipment manufacturers or field installers
- Lower installed cost
- "O" Ring & zinc locknut included
Specifications
- Part number
- 8729
- UPC / GTIN-12
- 658746887296
- Trade size
- 2-1/2"
- Listing
- cULus Listed, file E197675 verify at UL Product iQ ↗
- Material
- Zinc die-cast
- Carton quantity
- 5
- Brand
- Sealproof — a Superflex Ltd. brand
Dimensions
| A — overall length | 3.54 in |
|---|---|
| B — body diameter | 3.68 in |
| C — thread length | 1.02 in |
A overall length · B body diameter · C thread length. Nominal, in inches.
All Zinc Die Cast Liquid Tight Connectors About this family →
Item No. | Description | Size | UPC | Pkg | Spec sheet | |
|---|---|---|---|---|---|---|
3/8" | 658746887012 | 100 | ||||
1/2" | 658746887036 | 100 | ||||
658746887043 | 200 | |||||
3/4" | 658746887050 | 100 | ||||
658746887067 | 100 | |||||
1" | 658746887074 | 25 | ||||
1-1/4" | 658746887098 | 25 | ||||
1-1/2" | 658746887111 | 10 | ||||
2" | 658746887135 | 10 | ||||
3/8" | 658746887166 | 100 | ||||
1/2" | 658746887180 | 100 | ||||
658746887197 | 200 | |||||
3/4" | 658746887203 | 100 | ||||
658746887210 | 100 | |||||
1" | 658746887227 | 25 | ||||
1-1/4" | 658746887241 | 25 | ||||
1-1/2" | 658746887265 | 10 | ||||
2" | 658746887289 | 10 | ||||
2-1/2" | 658746887302 | 1 | ||||
3" | 658746887319 | 1 | ||||
3" | 658746887326 | 1 | ||||
4" | 658746887357 | 1 | ||||
4" | 658746887364 | 1 |
