Sealproof® Weatherproof Products · Threaded Conduit Bodies

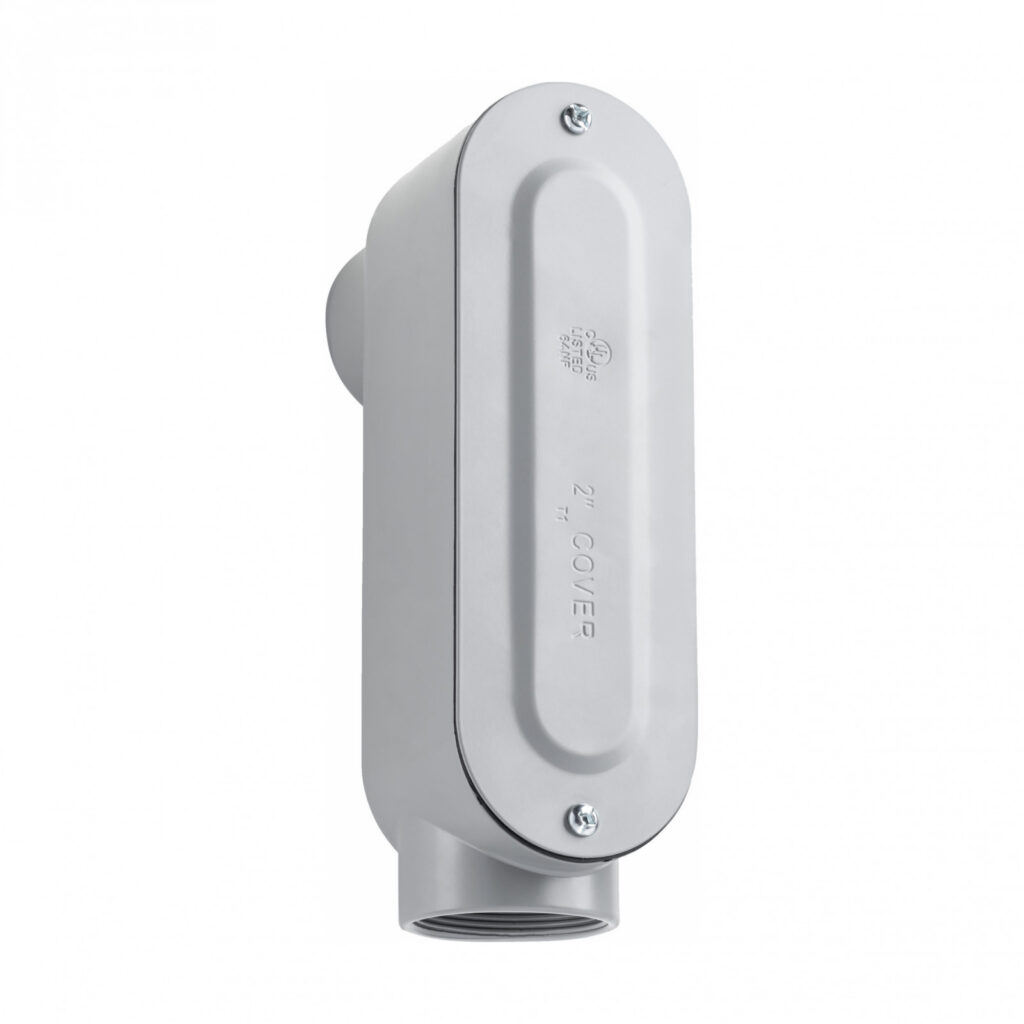

LB Series Threaded Conduit Body with Steel Cover and Gasket, 2"
Part no.
LB200
UPC 658746357966 Carton 5 pcs - cULus Listed · E362604
- Threaded · steel cover & gasket
A 2-inch threaded LB conduit body — a 90° turn with the opening on the back — that gives a pull point and a change of direction in a rigid conduit run. Ships with the steel cover and gasket.
- Trade size
- 2"
- Form
- LB — a 90° turn with the opening on the back
- Material
- Die-cast metal body, steel cover, powder-coat finish
- Includes
- Steel cover and gasket
- Listing
- cULus Listed, file E362604
- Pack
- 5 per carton
Request a quote
Questions? 1-800-394-3665 · sales@superflex.com
Downloads & documents
Features
- Includes Steel Cover and Gasket
Specifications
- Part number
- LB200
- UPC / GTIN-12
- 658746357966
- Trade size
- 2"
- Colour / finish
- Gray
- Listing
- cULus Listed, file E362604 verify at UL Product iQ ↗
- Material
- Die-cast metal
- Piece weight
- 1.7 lbs
- Carton quantity
- 5
- Carton weight
- 9.6 lbs
- Brand
- Sealproof — a Superflex Ltd. brand
Dimensions
| Dim. A | 10.05 in |
|---|---|
| Dim. B | 4.74 in |
| Dim. C | 2.05 in |
| Dim. D | 3.18 in |

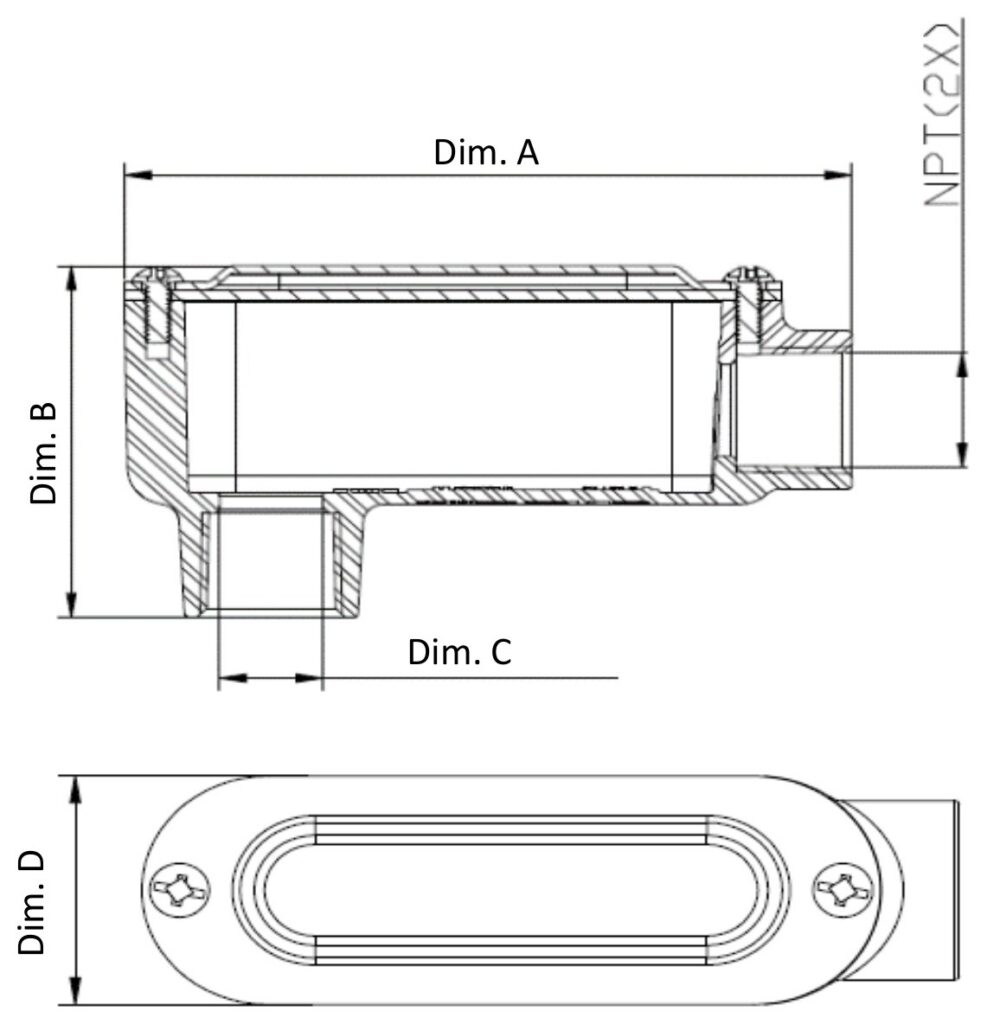

Dim. A–D as shown on the drawing. Nominal, in inches; tolerance X.X ±0.2, .XX ±0.1 unless otherwise specified.
All Threaded Conduit Bodies About this family →
Item No. | Description | Size | Color | UPC | Pkg | Spec sheet | |
|---|---|---|---|---|---|---|---|
1/2" | Gray | 658746357911 | 100 | ||||
3/4" | Gray | 658746357928 | 50 | ||||
1" | Gray | 658746357935 | 25 | ||||
1-1/4" | Gray | 658746357942 | 10 | ||||
1-1/2" | Gray | 658746357959 | 10 | ||||
2-1/2" | Gray | 658746357973 | 1 | ||||
3" | Gray | 658746357980 | 1 | ||||
3-1/2" | Gray | 658746357997 | 1 | ||||
4" | Gray | 658746358000 | 1 | ||||
1/2" | Gray | 658746358017 | 100 | ||||
3/4" | Gray | 658746358024 | 50 | ||||
1" | Gray | 658746358031 | 25 | ||||
1-1/4" | Gray | 658746358048 | 10 | ||||
1-1/2" | Gray | 658746358055 | 10 | ||||
2" | Gray | 658746358062 | 5 | ||||
2-1/2" | Gray | 658746358079 | 1 | ||||
3" | Gray | 658746358086 | 1 | ||||
3-1/2" | Gray | 658746358093 | 1 | ||||
4" | Gray | 658746358109 | 1 | ||||
1/2" | Gray | 658746358116 | 100 | ||||
3/4" | Gray | 658746358123 | 50 | ||||
1" | Gray | 658746358130 | 25 | ||||
1-1/4" | Gray | 658746358147 | 10 | ||||
1-1/2" | Gray | 658746358154 | 10 | ||||
2" | Gray | 658746358161 | 5 | ||||
2-1/2" | Gray | 658746358178 | 1 | ||||
3" | Gray | 658746358185 | 1 | ||||
3-1/2" | Gray | 658746358192 | 1 | ||||
4" | Gray | 658746358208 | 1 | ||||
1/2" | Gray | 658746357812 | 100 | ||||
3/4" | Gray | 658746357829 | 50 | ||||
1" | Gray | 658746357836 | 25 | ||||
1-1/4" | Gray | 658746357843 | 10 | ||||
1-1/2" | Gray | 658746357850 | 10 | ||||
2" | Gray | 658746357867 | 5 | ||||
2-1/2" | Gray | 658746357874 | 1 | ||||
3" | Gray | 658746357881 | 1 | ||||
3-1/2" | Gray | 658746357898 | 1 | ||||
4" | Gray | 658746357904 | 1 | ||||
1/2" | Gray | 658746358215 | 100 | ||||
3/4" | Gray | 658746358222 | 50 | ||||
1" | Gray | 658746358239 | 25 | ||||
1-1/4" | Gray | 658746358246 | 10 | ||||
1-1/2" | Gray | 658746358253 | 10 | ||||
2" | Gray | 658746358260 | 5 | ||||
2-1/2" | Gray | 658746358277 | 1 | ||||
3" | Gray | 658746358284 | 1 | ||||
3-1/2" | Gray | 658746358291 | 1 | ||||
4" | Gray | 658746358307 | 1 | ||||
1/2" | Gray | 658746358314 | 10 | ||||
3/4" | Gray | 658746358321 | 5 | ||||
1" | Gray | 658746358338 | 3 | ||||
1-1/4" | Gray | 658746358345 | 2 | ||||
1-1/2" | Gray | 658746358352 | 2 | ||||
2" | Gray | 658746358369 | 2 |
Need pricing on LB Series Threaded Conduit Body with Steel Cover and Gasket, 2″?
Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
