Sealproof® Weatherproof Products · Threaded Conduit Bodies
SLB Series Threaded Conduit Body with Steel Cover and Gasket, 1-1/2"
Part no.
SLB150
UPC 658746358352 Carton 2 pcs - cULus Listed · E197675
- Threaded · steel cover & gasket

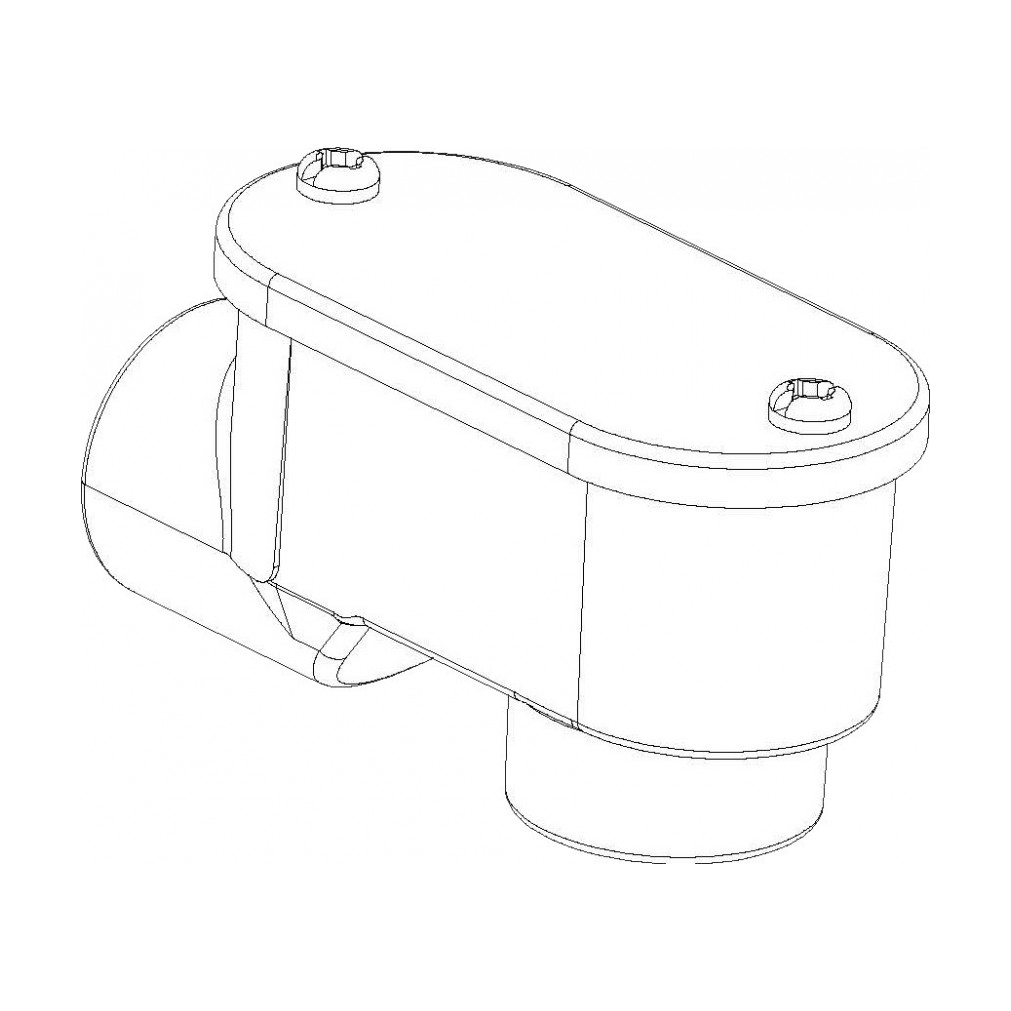

A 1-1/2-inch threaded SLB conduit body — an LB-style 90° turn — that gives a pull point and a change of direction in a rigid conduit run. Ships with the steel cover and gasket.
- Trade size
- 1-1/2"
- Form
- SLB — an LB-style 90° turn
- Material
- Die-cast metal body, steel cover, powder-coat finish
- Includes
- Steel cover and gasket
- Listing
- cULus Listed, file E197675
- Pack
- 2 per carton
Request a quote
Questions? 1-800-394-3665 · sales@superflex.com
Downloads & documents
Features
- Includes Steel Cover and Gasket
Also available as
Specifications
- Part number
- SLB150
- UPC / GTIN-12
- 658746358352
- Trade size
- 1-1/2"
- Colour / finish
- Gray
- Listing
- cULus Listed, file E197675 verify at UL Product iQ ↗
- Material
- Die-cast metal
- Piece weight
- 0.8 lbs
- Carton quantity
- 2
- Carton weight
- 2.1 lbs
- Brand
- Sealproof — a Superflex Ltd. brand
Dimensions
| Dim. A | 2.88 in |
|---|---|
| Dim. B | 1.59 in |
| Dim. C | 2.65 in |
| Dim. D | 6.43 in |
Dim. A–D as shown on the drawing. Nominal, in inches; tolerance X.X ±0.2, .XX ±0.1 unless otherwise specified.
All Threaded Conduit Bodies About this family →
Item No. | Description | Size | Color | UPC | Pkg | Spec sheet | |
|---|---|---|---|---|---|---|---|
1/2" | Gray | 658746357911 | 100 | ||||
3/4" | Gray | 658746357928 | 50 | ||||
1" | Gray | 658746357935 | 25 | ||||
1-1/4" | Gray | 658746357942 | 10 | ||||
1-1/2" | Gray | 658746357959 | 10 | ||||
2" | Gray | 658746357966 | 5 | ||||
2-1/2" | Gray | 658746357973 | 1 | ||||
3" | Gray | 658746357980 | 1 | ||||
3-1/2" | Gray | 658746357997 | 1 | ||||
4" | Gray | 658746358000 | 1 | ||||
1/2" | Gray | 658746358017 | 100 | ||||
3/4" | Gray | 658746358024 | 50 | ||||
1" | Gray | 658746358031 | 25 | ||||
1-1/4" | Gray | 658746358048 | 10 | ||||
1-1/2" | Gray | 658746358055 | 10 | ||||
2" | Gray | 658746358062 | 5 | ||||
2-1/2" | Gray | 658746358079 | 1 | ||||
3" | Gray | 658746358086 | 1 | ||||
3-1/2" | Gray | 658746358093 | 1 | ||||
4" | Gray | 658746358109 | 1 | ||||
1/2" | Gray | 658746358116 | 100 | ||||
3/4" | Gray | 658746358123 | 50 | ||||
1" | Gray | 658746358130 | 25 | ||||
1-1/4" | Gray | 658746358147 | 10 | ||||
1-1/2" | Gray | 658746358154 | 10 | ||||
2" | Gray | 658746358161 | 5 | ||||
2-1/2" | Gray | 658746358178 | 1 | ||||
3" | Gray | 658746358185 | 1 | ||||
3-1/2" | Gray | 658746358192 | 1 | ||||
4" | Gray | 658746358208 | 1 | ||||
1/2" | Gray | 658746357812 | 100 | ||||
3/4" | Gray | 658746357829 | 50 | ||||
1" | Gray | 658746357836 | 25 | ||||
1-1/4" | Gray | 658746357843 | 10 | ||||
1-1/2" | Gray | 658746357850 | 10 | ||||
2" | Gray | 658746357867 | 5 | ||||
2-1/2" | Gray | 658746357874 | 1 | ||||
3" | Gray | 658746357881 | 1 | ||||
3-1/2" | Gray | 658746357898 | 1 | ||||
4" | Gray | 658746357904 | 1 | ||||
1/2" | Gray | 658746358215 | 100 | ||||
3/4" | Gray | 658746358222 | 50 | ||||
1" | Gray | 658746358239 | 25 | ||||
1-1/4" | Gray | 658746358246 | 10 | ||||
1-1/2" | Gray | 658746358253 | 10 | ||||
2" | Gray | 658746358260 | 5 | ||||
2-1/2" | Gray | 658746358277 | 1 | ||||
3" | Gray | 658746358284 | 1 | ||||
3-1/2" | Gray | 658746358291 | 1 | ||||
4" | Gray | 658746358307 | 1 | ||||
1/2" | Gray | 658746358314 | 10 | ||||
3/4" | Gray | 658746358321 | 5 | ||||
1" | Gray | 658746358338 | 3 | ||||
1-1/4" | Gray | 658746358345 | 2 | ||||
2" | Gray | 658746358369 | 2 |
Need pricing on SLB Series Threaded Conduit Body with Steel Cover and Gasket, 1-1/2″?
Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
