Sealproof® Weatherproof Products · Threaded Conduit Bodies

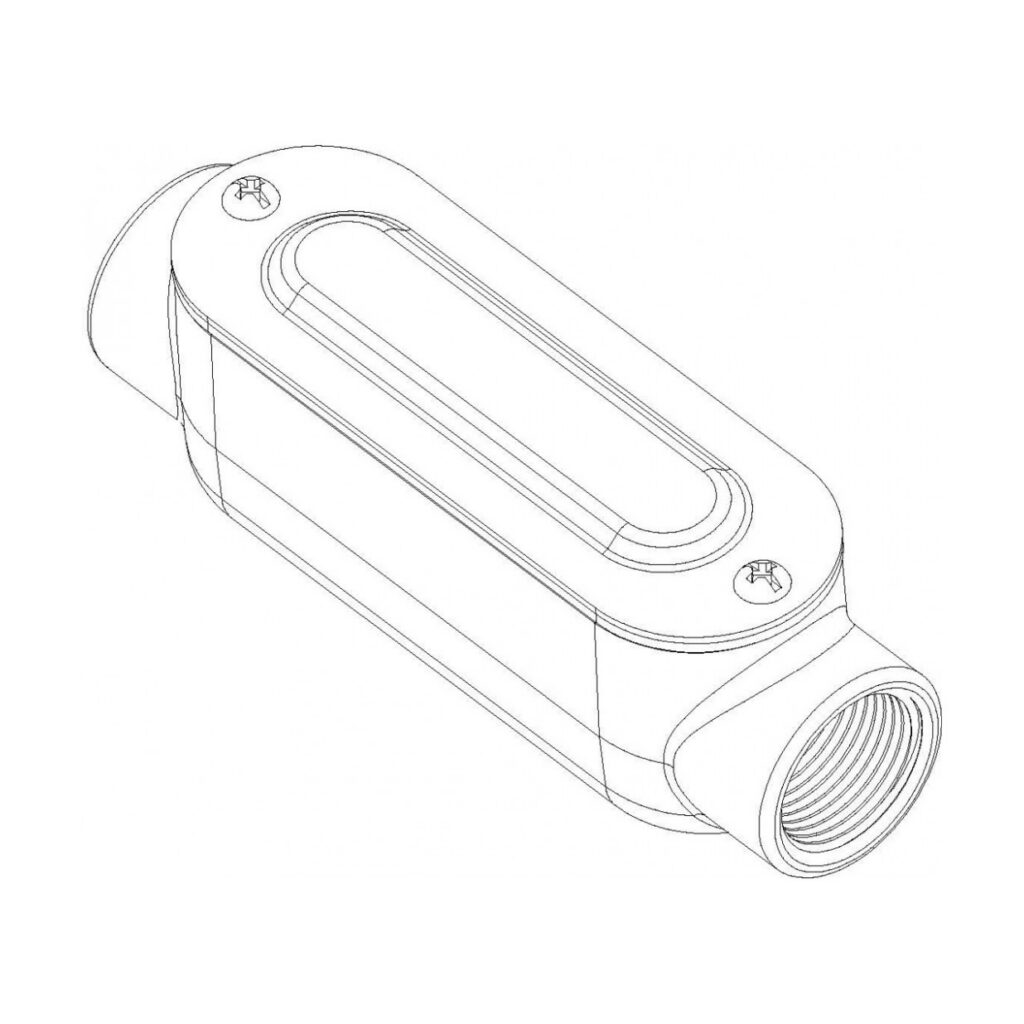

LC Series Threaded Conduit Body with Steel Cover and Gasket, 1"
Part no.
LC100
UPC 658746358031 Carton 25 pcs - cULus Listed · E362604
- Threaded · steel cover & gasket
A 1-inch threaded LC conduit body — a straight-through body — that gives a pull point and a change of direction in a rigid conduit run. Ships with the steel cover and gasket.
- Trade size
- 1"
- Form
- LC — a straight-through body
- Material
- Die-cast metal body, steel cover, powder-coat finish
- Includes
- Steel cover and gasket
- Listing
- cULus Listed, file E362604
- Pack
- 25 per carton (5 per inner pack)
Request a quote
Questions? 1-800-394-3665 · sales@superflex.com
Downloads & documents
Features
- Includes Steel Cover and Gasket
Specifications
- Part number
- LC100
- UPC / GTIN-12
- 658746358031
- Trade size
- 1"
- Colour / finish
- Gray
- Listing
- cULus Listed, file E362604 verify at UL Product iQ ↗
- Material
- Die-cast metal
- Piece weight
- 0.4 lbs
- Inner pack
- 5
- Carton quantity
- 25
- Carton weight
- 11.8 lbs
- Brand
- Sealproof — a Superflex Ltd. brand
Dimensions
| Dim. A | 6.45 in |
|---|---|
| Dim. B | 2.12 in |
| Dim. C | 1.04 in |
| Dim. D | 1.82 in |
Dim. A–D as shown on the drawing. Nominal, in inches; tolerance X.X ±0.2, .XX ±0.1 unless otherwise specified.
All Threaded Conduit Bodies About this family →
Item No. | Description | Size | Color | UPC | Pkg | Spec sheet | |
|---|---|---|---|---|---|---|---|
1/2" | Gray | 658746357911 | 100 | ||||
3/4" | Gray | 658746357928 | 50 | ||||
1" | Gray | 658746357935 | 25 | ||||
1-1/4" | Gray | 658746357942 | 10 | ||||
1-1/2" | Gray | 658746357959 | 10 | ||||
2" | Gray | 658746357966 | 5 | ||||
2-1/2" | Gray | 658746357973 | 1 | ||||
3" | Gray | 658746357980 | 1 | ||||
3-1/2" | Gray | 658746357997 | 1 | ||||
4" | Gray | 658746358000 | 1 | ||||
1/2" | Gray | 658746358017 | 100 | ||||
3/4" | Gray | 658746358024 | 50 | ||||
1-1/4" | Gray | 658746358048 | 10 | ||||
1-1/2" | Gray | 658746358055 | 10 | ||||
2" | Gray | 658746358062 | 5 | ||||
2-1/2" | Gray | 658746358079 | 1 | ||||
3" | Gray | 658746358086 | 1 | ||||
3-1/2" | Gray | 658746358093 | 1 | ||||
4" | Gray | 658746358109 | 1 | ||||
1/2" | Gray | 658746358116 | 100 | ||||
3/4" | Gray | 658746358123 | 50 | ||||
1" | Gray | 658746358130 | 25 | ||||
1-1/4" | Gray | 658746358147 | 10 | ||||
1-1/2" | Gray | 658746358154 | 10 | ||||
2" | Gray | 658746358161 | 5 | ||||
2-1/2" | Gray | 658746358178 | 1 | ||||
3" | Gray | 658746358185 | 1 | ||||
3-1/2" | Gray | 658746358192 | 1 | ||||
4" | Gray | 658746358208 | 1 | ||||
1/2" | Gray | 658746357812 | 100 | ||||
3/4" | Gray | 658746357829 | 50 | ||||
1" | Gray | 658746357836 | 25 | ||||
1-1/4" | Gray | 658746357843 | 10 | ||||
1-1/2" | Gray | 658746357850 | 10 | ||||
2" | Gray | 658746357867 | 5 | ||||
2-1/2" | Gray | 658746357874 | 1 | ||||
3" | Gray | 658746357881 | 1 | ||||
3-1/2" | Gray | 658746357898 | 1 | ||||
4" | Gray | 658746357904 | 1 | ||||
1/2" | Gray | 658746358215 | 100 | ||||
3/4" | Gray | 658746358222 | 50 | ||||
1" | Gray | 658746358239 | 25 | ||||
1-1/4" | Gray | 658746358246 | 10 | ||||
1-1/2" | Gray | 658746358253 | 10 | ||||
2" | Gray | 658746358260 | 5 | ||||
2-1/2" | Gray | 658746358277 | 1 | ||||
3" | Gray | 658746358284 | 1 | ||||
3-1/2" | Gray | 658746358291 | 1 | ||||
4" | Gray | 658746358307 | 1 | ||||
1/2" | Gray | 658746358314 | 10 | ||||
3/4" | Gray | 658746358321 | 5 | ||||
1" | Gray | 658746358338 | 3 | ||||
1-1/4" | Gray | 658746358345 | 2 | ||||
1-1/2" | Gray | 658746358352 | 2 | ||||
2" | Gray | 658746358369 | 2 |
Need pricing on LC Series Threaded Conduit Body with Steel Cover and Gasket, 1″?
Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
