Family image shown — colour and finish may differ. Part photo coming soon.
Sealproof® Conduit and Connectors · Non-Metallic Liquid Tight Conduit
Flexible Liquid Tight Conduit, 1-1/4", 50 ft
Part no.
8434-50
UPC 658746843452 - Liquid-tight · Type B (LFNC-B)
Flexible flexible non-metallic liquid-tight conduit (Type B, LFNC-B), 50 ft coil — a PVC raceway that keeps oil, water and sunlight off the conductors inside. Terminate it with Sealproof liquid-tight connectors.
- Length
- 50 ft coil
- Colour
- Gray
- Material
- Flexible PVC
- Temperature rating
- 80°C dry / 60°C wet / 70°C oil resistant (105°C dry or 90°C wet available on request)
Request a quote
Questions? 1-800-394-3665 · sales@superflex.com
Downloads & documents
Features
- Listed under the Underwriter’s Laboratories
- CSA Certified by Canadian Standards Association
- 3/8 inch through 4 inch trade size

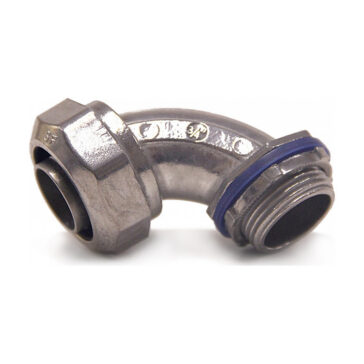

- Use with SEALPROOF® straight or right angle connectors
- May also be used with metallic connectors for liquid-tight conduit
- Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments
- Resists abuse, pull and crushing
- UL Rating: 80°C dry, 60°C wet. 70°C oil resistant
- CSA rating – 18°C to 75°C
- Additional temperature ratings available. Contact us for details
- Outdoor, sunlight resistant, direct burial
- Smooth inside for easier wire pulling, no hazardous sharp edges or burrs, will not damage conductors
- Lightweight and lower installed cost
- Quick installation, cuts with utility knife or PVC cutter
- Integral rigid & flexible PVC construction. Phthalate Free.
Specifications
- Part number
- 8434-50
- UPC / GTIN-12
- 658746843452
- Length
- 50 ft
- Material
- Flexible PVC
- Temperature rating
- 80°C dry / 60°C wet / 70°C oil resistant (105°C dry or 90°C wet available on request)
- Standard put-up
- 50 ft per coil
- Brand
- Sealproof — a Superflex Ltd. brand

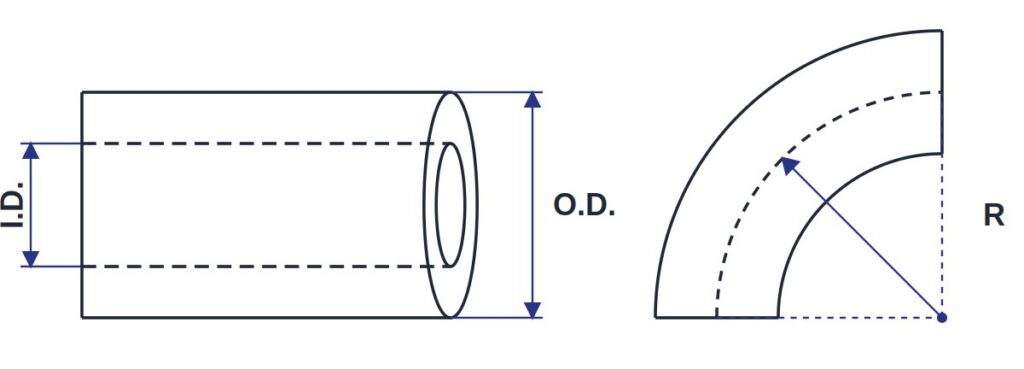

Dimensions
| O.D. | 1.630 – 1.660 in |
|---|---|
| I.D. | 1.380 – 1.410 in |
| Min. bend radius | 7 in |
O.D. outside diameter · I.D. inside diameter · R minimum bend radius to the centreline. Nominal, in inches.
Works with
All Non-Metallic Liquid Tight Conduit About this family →
Item No. | Description | Size | Color | UPC | Spec sheet | |
|---|---|---|---|---|---|---|
3/8" | Gray | 658746843001 | ||||
658746843018 | ||||||
658746843025 | ||||||
1/2" | Gray | 658746843100 | ||||
658746843247 | ||||||
658746843254 | ||||||
658746843193 | ||||||
658746843230 | ||||||
658746843261 | ||||||
1/2" | Gray | 658746843117 | ||||
658746843278 | ||||||
1/2" | Black | 658746843186 | ||||
3/4" | Gray | 658746843209 | ||||
658746843346 | ||||||
658746843360 | ||||||
658746843292 | ||||||
658746843322 | ||||||
658746843353 | ||||||
658746843377 | ||||||
658746843384 | ||||||
658746843391 | ||||||
3/4" | Gray | 658746843216 | ||||
3/4" | Black | 658746843285 | ||||
658746843421 | ||||||
1" | Gray | 658746843308 | ||||
658746843438 | ||||||
658746843445 | ||||||
1" | Gray | 658746843315 | ||||
1-1/4" | Gray | 658746843407 | ||||
1-1/4" | Gray | 658746843414 | ||||
658746843469 | ||||||
658746843476 | ||||||
1-1/2" | Gray | 658746843506 | ||||
658746843520 | ||||||
658746843537 | ||||||
1-1/2" | Gray | 658746843513 | ||||
2" | Gray | 658746843605 | ||||
2" | Gray | 658746843612 | ||||
2-1/2" | Gray | 658746943701 | ||||
3" | Gray | 658746943800 | ||||
3-1/2" | Gray | 658746943909 | ||||
4" | Gray | 658746944005 |
Need pricing on Flexible Liquid Tight Conduit, 1-1/4″, 50 ft?
Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
