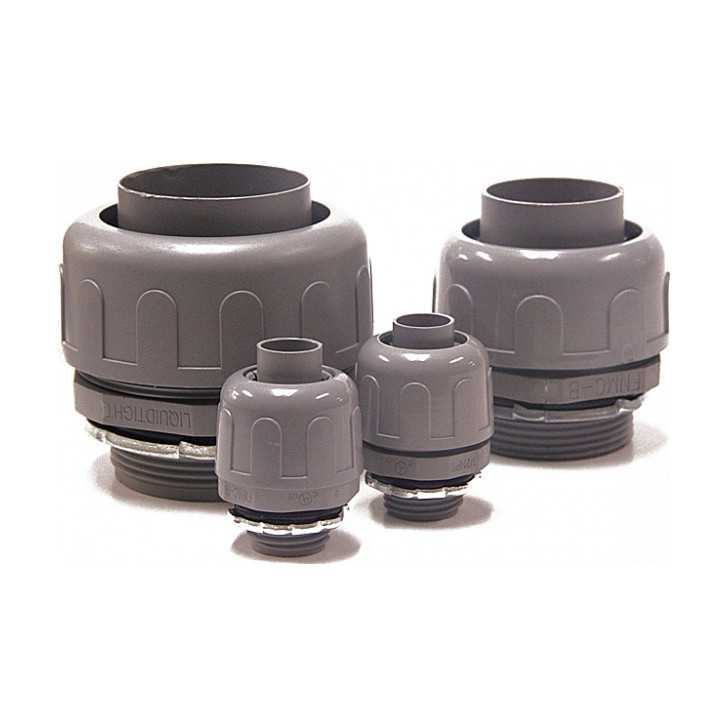

Straight Connectors

SKU: a9c08a909def Categories: Non-Metallic Liquid Tight Connectors, Sealproof® Conduit and Connectors

cULus Listed · E197675
Liquid-tight · for LFNC-B conduit

Straight Connectors — 18 part numbers, sizes 3/8" to 2", in gray, black.

Part numbers: 18
Sizes: 3/8" to 2" (7 sizes)
Colours: Gray · Black
Listing: cULus Listed, file E197675
Material: PVC
Pack: 10–500 per carton
Catalog: p. 32, 34

Request a quote
See all 18 part numbers ⤓ Sealproof Weatherproof catalog, Rev. 2026 (PDF) · p. 32, 34

Features

Listed under the Underwriter's Laboratories
Available 3/8 inch through 2 inch
All nylon construction resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents
No disassembly required. Instead, the installer simply pushes the conduit or tubing onto the ferrule, tightening the domed sealing nut. The completed assembly can then be secured in the chassis by the locknut
No threading of the conduit or tubing required to install, eliminating the possibility of cutting the conduit and creating leak paths
Standard color – Black or Gray
Complete conduit/connector system is reusable. Conduit will not wind tight onto the connector during assembly and can be easily removed by pulling while turning in a clockwise direction
Suitable for indoor/outdoor use; for original equipment manufacturers or field installers
Lower installed cost
Molded of type nylon 6. Flammability classification 94V-2: temperature index 125°C
"0" Ring and steel locknut included

Product Inquiry

Choose a part number

Item No.	Description	Size	Color	UPC	Pkg	Spec sheet
8400	Straight Liquid Tight Connector, 3/8″ — Black	3/8"	Black	658746884004	100	Spec sheet	›
8401	Straight Liquid Tight Connector, 3/8″ — Gray	3/8"	Gray	658746884011	100	Spec sheet	›
8402	Straight Liquid Tight Connector, 1/2″ — Black	1/2"	Black	658746884028	100	Spec sheet	›
8403	Straight Liquid Tight Connector, 1/2″ — Gray	1/2"	Gray	658746884035	100	Spec sheet	›
8404	Straight Liquid Tight Connector, 3/4″ — Black	3/4"	Black	658746884042	100	Spec sheet	›
8405	Straight Liquid Tight Connector, 3/4″ — Gray	3/4"	Gray	658746884059	100	Spec sheet	›
8406	Straight Liquid Tight Connector, 1″ — Black	1"	Black	658746884066	50	Spec sheet	›
8407	Straight Liquid Tight Connector, 1″ — Gray	1"	Gray	658746884073	50	Spec sheet	›
8408	Straight Liquid Tight Connector, 1-1/4″ — Black	1-1/4"	Black	658746884080	25	Spec sheet	›
8409	Straight Liquid Tight Connector, 1-1/4″ — Gray	1-1/4"	Gray	658746884097	25	Spec sheet	›
8410	Straight Liquid Tight Connector, 1-1/2″ — Black	1-1/2"	Black	658746884103	10	Spec sheet	›
8411	Straight Liquid Tight Connector, 1-1/2″ — Gray	1-1/2"	Gray	658746884110	10	Spec sheet	›
8412	Straight Liquid Tight Connector, 2″ — Black	2"	Black	658746884127	10	Spec sheet	›
8413	Straight Liquid Tight Connector, 2″ — Gray	2"	Gray	658746884134	10	Spec sheet	›
8503	Screw-On Connector, Straight, 1/2″	1/2"	Gray	658746885032	100	Spec sheet	›
8503P	Screw-On Connector, Straight, 1/2″ — Bulk, 500 pcs/box			658746885049	500	Spec sheet	›
8505	Screw-On Connector, Straight, 3/4″	3/4"	Gray	658746885056	100	Spec sheet	›
8505P	Screw-On Connector, Straight, 3/4″ — Bulk, 500 pcs/box			658746885063	500	Spec sheet	›

Looking for a different non-metallic liquid tight connectors part? See all 42 part numbers in Non-Metallic Liquid Tight Connectors →

Need pricing on Straight Connectors? Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.

Request a quote 1-800-394-3665

Frequently asked about Straight Connectors

Do nylon connectors need a locknut?

Yes. Each connector is supplied with its steel locknut and an O-ring; no separate gasket or flat washer is needed, and we do not offer a flat-washer version. The O-ring seats against the enclosure wall at the knockout and is compressed by tightening the locknut from inside. Hold the fitting still and turn the locknut — spinning the fitting drags the O-ring and is the usual cause of leaks.

Which body should I choose: straight, 45° or 90°?

Use straight where the conduit meets the enclosure square on; 45° and 90° where the conduit has to change direction immediately at the box to avoid a tight bend in the conduit itself.

Are the connectors rated for outdoor use?

Yes. They are cULus Listed for wet locations and UV-stabilised for permanent outdoor exposure.
