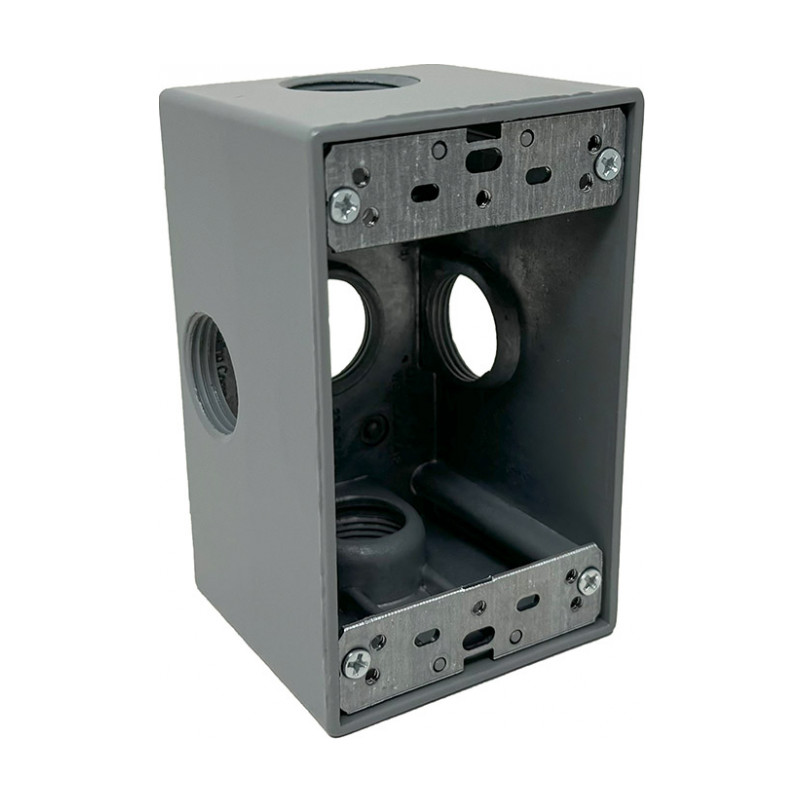

1 Gang Rectangular Deep Outlet Boxes — 7 part numbers, sizes 1/2" to 1", in gray, white.
Item No. | Description | Size | Color | UPC | Pkg | Spec sheet | |
|---|---|---|---|---|---|---|---|
1/2" | Gray | 658746110929 | 10 | ||||
3/4" | Gray | 658746110936 | 10 | ||||
3/4" | White | 658746110974 | 10 | ||||
1/2" | Gray | 658746112862 | 10 | ||||
3/4" | Gray | 658746112879 | 10 | ||||
3/4" | Gray | 658746235615 | 10 | ||||
1" | Gray | 658746231143 | 10 |
Looking for a different 1 gang outlet boxes part? See all 23 part numbers in 1 Gang Outlet Boxes →
The number tells you how many threaded conduit entries the box has. A 3-hole box has one hub on each side and one on the bottom; a 5-hole box adds two more on the back or top so you can run conduit in several directions. Unused hubs are closed with the plugs supplied.
Any Sealproof one-gang cover: flat device covers, blank covers, and one-gang extra-duty while-in-use covers all bolt to the standard one-gang screw pattern with the gasket in between.
Yes. They are cULus Listed for wet locations when installed with a listed weatherproof cover and gasket and with the unused hubs plugged.
