Item No. | Description | Size | Color | UPC | Spec sheet | |
|---|---|---|---|---|---|---|
3/8" | Gray | 658746843001 | ||||
658746843018 | ||||||
658746843025 | ||||||
1/2" | Gray | 658746843100 | ||||
658746843247 | ||||||
658746843254 | ||||||
658746843193 | ||||||
658746843230 | ||||||
658746843261 | ||||||
1/2" | Gray | 658746843117 | ||||
658746843278 | ||||||
1/2" | Black | 658746843186 | ||||
3/4" | Gray | 658746843209 | ||||
658746843346 | ||||||
658746843360 | ||||||
658746843292 | ||||||
658746843322 | ||||||
658746843353 | ||||||
658746843377 | ||||||
658746843384 | ||||||
658746843391 | ||||||
3/4" | Gray | 658746843216 | ||||
3/4" | Black | 658746843285 | ||||
658746843421 | ||||||
1" | Gray | 658746843308 | ||||
658746843438 | ||||||
658746843445 | ||||||
1" | Gray | 658746843315 | ||||
1-1/4" | Gray | 658746843407 | ||||
658746843452 | ||||||
1-1/4" | Gray | 658746843414 | ||||
658746843469 | ||||||
658746843476 | ||||||
1-1/2" | Gray | 658746843506 | ||||
658746843520 | ||||||
658746843537 | ||||||
1-1/2" | Gray | 658746843513 | ||||
2" | Gray | 658746843605 | ||||
2" | Gray | 658746843612 | ||||
2-1/2" | Gray | 658746943701 | ||||
3" | Gray | 658746943800 | ||||
3-1/2" | Gray | 658746943909 | ||||
4" | Gray | 658746944005 |

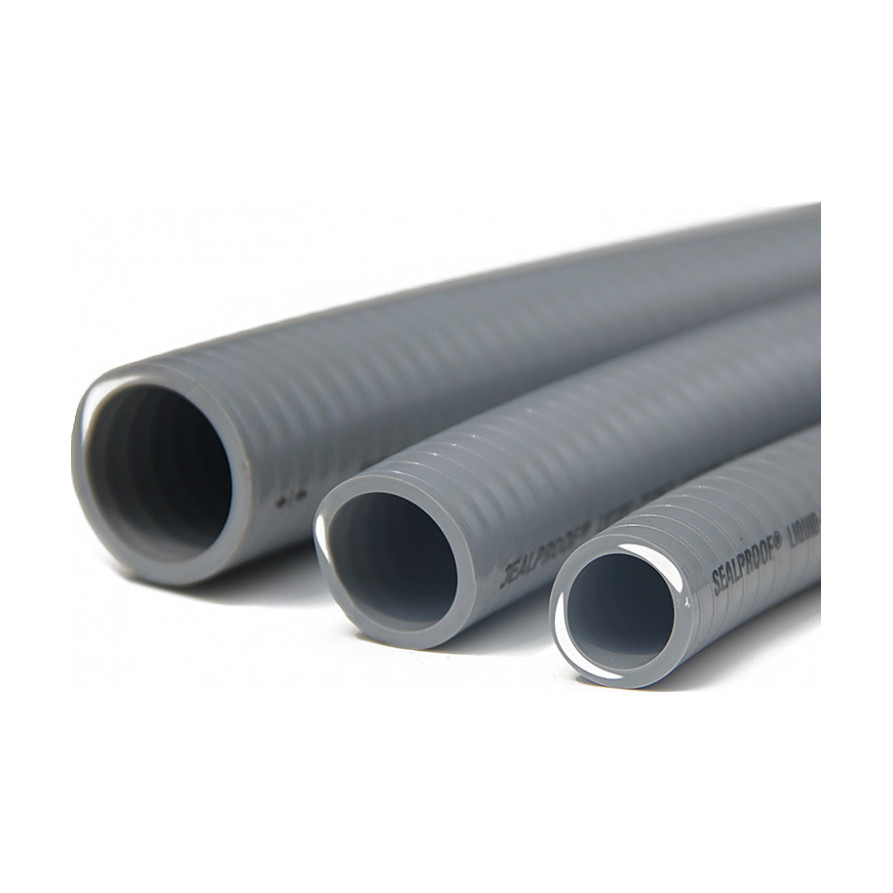

Non-Metallic Liquid Tight Conduit
- UL Listed · E129973 · CSA Certified
- Liquid-tight · Type B (LFNC-B)
Non-Metallic Liquid Tight Conduit — 43 part numbers, sizes 3/8" to 4", in gray, black.
- Part numbers
- 43
- Sizes
- 3/8" to 4" (11 sizes) — 2-1/2", 3", 3-1/2", 4" special order
- Lengths
- 4 ft · 6 ft · 10 ft · 25 ft · 30 ft · 40 ft · 50 ft · 100 ft · 150 ft · 200 ft · 250 ft · 400 ft · 500 ft · 700 ft · 800 ft · 1000 ft · 1200 ft
- Colours
- Gray · Black
- Listing
- UL Listed, file E129973; CSA Certified
- Material
- Flexible PVC
- Temperature rating
- 80°C dry / 60°C wet / 70°C oil resistant (105°C dry or 90°C wet available on request)
Features
- Listed under the Underwriter’s Laboratories
- CSA Certified by Canadian Standards Association
- 3/8 inch through 4 inch trade size
- Use with SEALPROOF® straight or right angle connectors
- May also be used with metallic connectors for liquid-tight conduit
- Resists corrosion, abrasion, oil, water, acid, metal shavings, and rough environments
- Resists abuse, pull and crushing
- UL Rating: 80°C dry, 60°C wet. 70°C oil resistant
- CSA rating – 18°C to 75°C
- Additional temperature ratings available. Contact us for details
- Outdoor, sunlight resistant, direct burial
- Smooth inside for easier wire pulling, no hazardous sharp edges or burrs, will not damage conductors
- Lightweight and lower installed cost
- Quick installation, cuts with utility knife or PVC cutter
- Integral rigid & flexible PVC construction. Phthalate Free
Product Inquiry
Need pricing on Non-Metallic Liquid Tight Conduit?
Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
Frequently asked about Non-Metallic Liquid Tight Conduit
What is the difference between LFNC-A, LFNC-B and LFNC-C?
They are three constructions permitted by NEC Article 356. LFNC-B, the most common, is a smooth seamless jacket with an integral reinforcement between the inner and outer layers. LFNC-A is a smooth jacket over a corrugated core; LFNC-C is a corrugated outer jacket.
Can liquid-tight non-metallic conduit be buried?
Yes. Sealproof LFNC-B is listed for direct burial and concrete encasement; install per NEC 356.10 and the 300.5 cover requirements. UL 1660 and CSA C22.2 No. 227.2 are a harmonized standard, so the direct-burial approval applies in Canada as well as the US, subject to the inspector's acceptance. Older print legends may read DIRECT BURIAL IN US.
What connectors do I use?
Listed liquid-tight connectors sized to the conduit: Sealproof nylon connectors for corrosion-prone areas, zinc die-cast where a metal fitting is specified.
Still unsure? 1-800-394-3665 or ask our sales team.
