Item # |
I.D. |
O.D. |
Standard Length |
Working PSI at 70°F |
Vac Rating at 70°F |
Bend Radius |
Weight/CFT |
|---|---|---|---|---|---|---|---|
1034CL |
3/4 " |
15/16 " |
100 FT |
105 |
28 in/Hg |
3 " |
20 lbs |
1100CL |
1 " |
1 1/4 " |
100 FT |
100 |
28 in/Hg |
3 " |
27 lbs |
1114CL |
1 1/4 " |
1 1/2 " |
100 FT |
95 |
28 in/Hg |
3 " |
30 lbs |
1112CL |
1 1/2 " |
1 13/16 " |
100 FT |
85 |
28 in/Hg |
4 " |
40 lbs |
1200CL |
2 " |
2 3/8 " |
100 FT |
80 |
28 in/Hg |
5 " |
60 lbs |
1212CL |
2 1/2 " |
2 7/8 " |
100 FT |
75 |
28 in/Hg |
7 " |
85 lbs |
1300CL |
3 " |
3 7/16 " |
100 FT |
65 |
28 in/Hg |
8 " |
115 lbs |
1312CL |
3 1/2 " |
3 15/16 " |
100 FT |
60 |
28 in/Hg |
9 " |
135 lbs |
1400CL |
4 " |
4 1/2 " |
100 FT |
50 |
28 in/Hg |
10 " |
175 lbs |

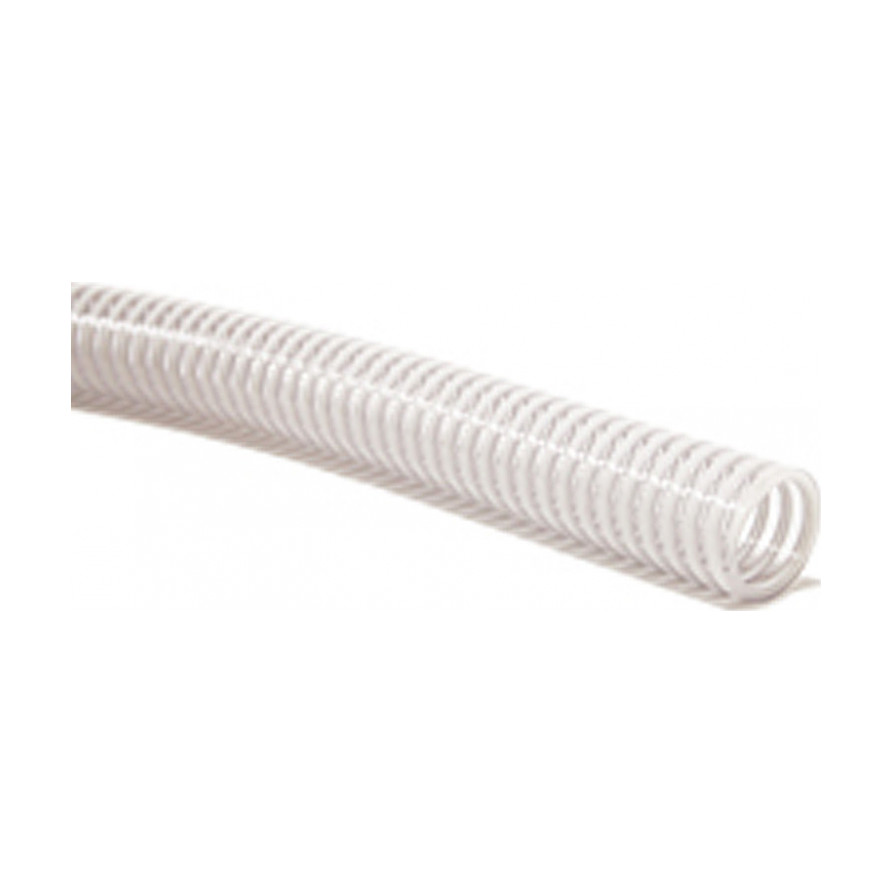

Rollerflex™ 1000 CL Water Suction and Discharge Hose
Color: Transparent, smooth surface. Material: Phthalate Free PVC Applications: Water, liquids and light chemicals.
Features
- Color: Transparent, smooth surface
- Material: Phthalate Free PVC
- Applications: Water, liquids and light chemicals
- Special Features: Smooth inner surface for easy flow and easy cleaning
- Note: All psi and va. rating are based on an open ended system at ambient temperatures
Product Inquiry
Need pricing on Rollerflex™ 1000 CL Water Suction and Discharge Hose ?
Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
Frequently asked about Rollerflex™ 1000 CL Water Suction and Discharge Hose
What is the difference between suction hose and discharge hose?
Suction hose has a rigid helix so it will not collapse under the pump's vacuum; discharge hose only needs to hold pressure and can be lighter. Rollerflex suction series handle both duties.
What sizes are available?
3/4" to 4" I.D. in the standard series, in 100-foot lengths; other lengths are cut to order. 4" is the largest size we run in standard construction — larger sizes are quoted on request.
What fittings do I use?
Barbed or king-nipple fittings with band clamps, or camlock adapters on the larger sizes. Match the fitting to the hose I.D.
Still unsure? 1-800-394-3665 or ask our sales team.
