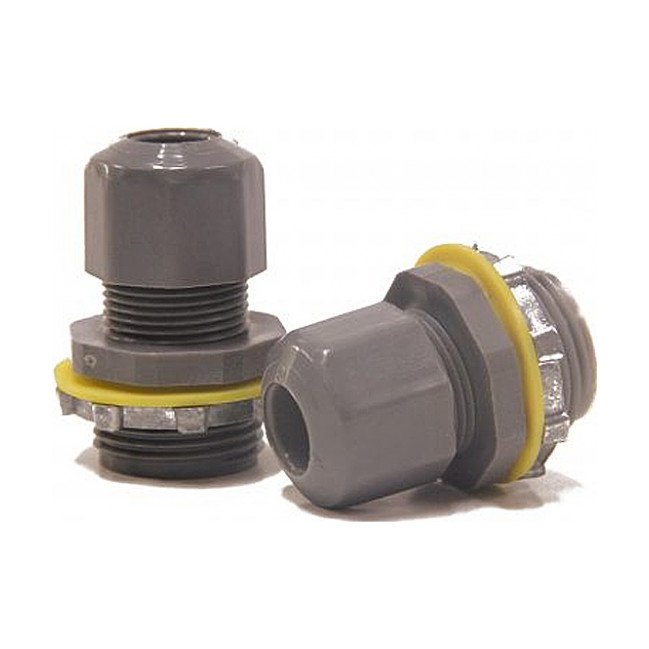

Low-Profile Strain Relief Cord Connectors – Superflex Ltd.

Low-Profile Strain Relief Cord Connectors

SKU: 53a4b34acd83 Categories: ,

Low-Profile Strain Relief Cord Connectors.

Request a quote
⤓ Sealproof catalog, Rev. 2026 (PDF)

Features

  • Listed under the Underwriter's Laboratories
  • CSA Certified by Canadian Standards Association
  • Nonmetallic
  • Liquid-tight
  • Oil-tight
  • Furnished with sealing ring and locknut
  • Unique grommet with gripping fingers
  • Largest cord range in the industry means less items to stock
  • Liquid-tight seal and superior pullout resistance is accomplished by just tightening the nut
  • A sealing ring is furnished to assure a liquid-tight seal when installing in non-threaded openings
  • Wire strength will not meet UL's 35 lb. pullout test requirement for the connectors
Product Inquiry

Product Inquiry

This field is for validation purposes and should be left unchanged.
This field is hidden when viewing the form
Item #
Description
Cord Range
Trade Size
Unit Package
Std Package
Dim. A
Dim. B
Dim. C
LPCG503
Low-Profile Strain Relief Cord Connectors
.100/.300
½”
25
100
1,792
0,63
1,042
LPCG50
Low-Profile Strain Relief Cord Connectors
.200/.472
½”
25
100
1,792
0,63
1,042
LPCG507
Low-Profile Strain Relief Cord Connectors
.385/.750
½”
25
100
2,178
0,517
1,305
LPCG753
Low-Profile Strain Relief Cord Connectors
.100/.300
¾”
10
50
1,963
0,57
1,042
LPCG754
Low-Profile Strain Relief Cord Connectors
.200/.472
¾”
10
50
1,963
0,57
1,305
LPCG757
Low-Profile Strain Relief Cord Connectors
.385/.750
¾”
10
50
2,25
0,6
1,042
Need pricing on Low-Profile Strain Relief Cord Connectors? Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
Request a quote 1-800-394-3665

Frequently asked about Low-Profile Strain Relief Cord Connectors

How do I pick the right cord connector?

Choose by cord outside diameter first: each connector lists a minimum and maximum cord range. Then match the thread size to the knockout or hub.

Are cord connectors liquid-tight?

Yes when the cord diameter is within the connector's range and the gland is tightened; they are listed for wet locations.

Straight or 90°?

Use 90° where the cord must leave the box parallel to the wall or where a straight fitting would leave the cord bent sharply.

Still unsure? 1-800-394-3665 or ask our sales team.
