Item # |
I.D. |
O.D. |
Standard Length |
Working PSI at 70°F |
Vac Rating at 70°F |
Bend Radius |
Weight/CFT |
|---|---|---|---|---|---|---|---|
9112SW |
1 1/2 " |
1.79 " |
100 FT |
50 |
29 in/Hg |
3.2 " |
31 lbs |
9134SW |
1 3/4 " |
2.09 " |
100 FT |
45 |
29 in/Hg |
3.2 " |
44 lbs |
9200SW |
2 " |
2.36 " |
100 FT |
40 |
29 in/Hg |
3.5 " |
52 lbs |
9212SW |
2 1/2 " |
2.93 " |
100 FT |
35 |
29 in/Hg |
4.5 " |
81 lbs |
9300SW |
3 " |
3.50 " |
100 FT |
35 |
29 in/Hg |
6.5 " |
99 lbs |
9400SW |
4 " |
4.50 " |
100 FT |
35 |
29 in/Hg |
10.4 " |
140 lbs |

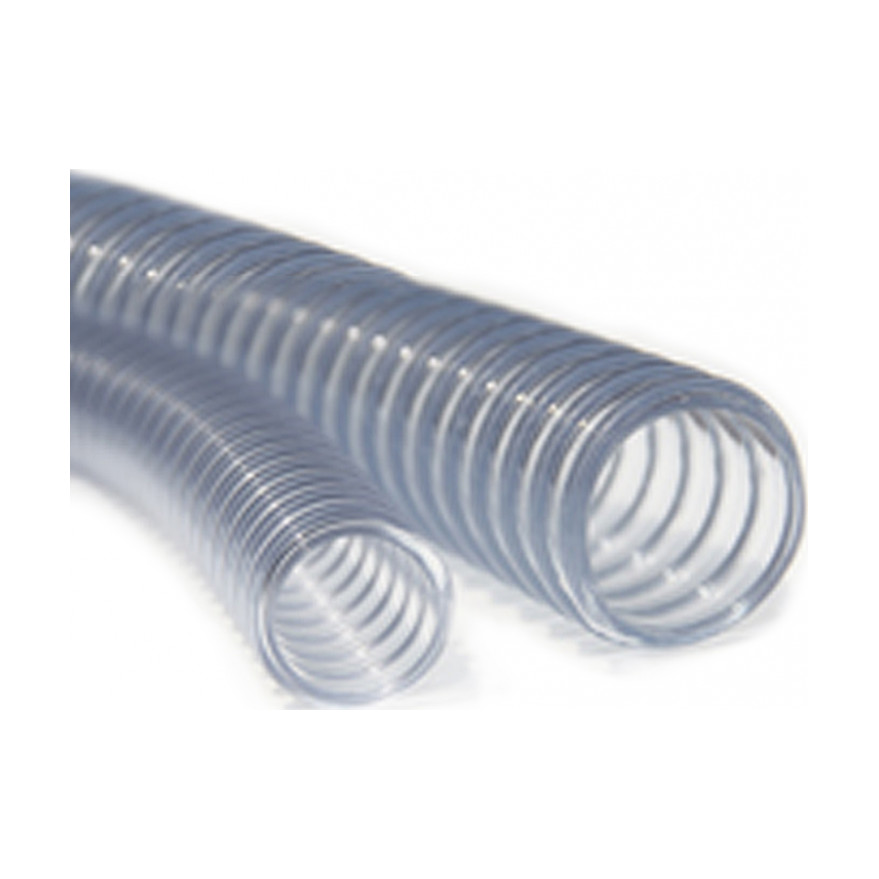

Rollerflex™ 9000 SW Food, Beverage and Dairy Handling Hose with Static Wire
Color: Clear high density PVC helix with embedded static wire.
Features
- Color: Clear high density PVC helix with embedded static wire
- Applications: Handling and transfer of edible food products, beverages, milk and milk products, and is recommended for the transmission of powder, pellets or granular materials
- Special Features: High quality, flexible PVC compound in compliance with FDA and 3A Sanitary Standards. USDA approved for meat and poultry plants. Smooth inner surface for easy flow and easy cleaning
- Note: All psi and va. rating are based on an open ended system at ambient temperatures
Product Inquiry
Need pricing on Rollerflex™ 9000 SW Food, Beverage and Dairy Handling Hose with Static Wire?
Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
Frequently asked about Rollerflex™ 9000 SW Food, Beverage and Dairy Handling Hose with Static Wire
Is the hose FDA compliant?
The compounds used in our food and beverage hose series are FDA formulated, and we supply a signed company letter on the resin formulation on request. That letter speaks to the compound, not to approval of the finished hose for a particular application; we do not hold third-party FDA test reports, and suitability for your specific use remains your determination. These hoses are not recommended for medical use.
Can it handle hot CIP cleaning?
The hose tolerates typical warm CIP cycles; consult the temperature rating on the family page and avoid live steam.
Why a static wire version?
Dry powders and granules generate static as they flow; the 9000 SW's embedded wire, bonded at both fittings, dissipates the charge.
