Item # |
I.D. |
Standard Length |
Working PSI at 70°F |
Weight/CFT |
|---|---|---|---|---|
DH-112 |
1 1/2 " |
300 FT |
75 |
17 lbs |
DH-200 |
2 " |
300 FT |
60 |
22 lbs |
DH-212 |
2 1/2 " |
300 FT |
60 |
29 lbs |
DH-300 |
3 " |
300 FT |
45 |
40 lbs |
DH-400 |
4 " |
300 FT |
60 |
53 lbs |
DH-600 |
6 " |
300 FT |
60 |
82 lbs |

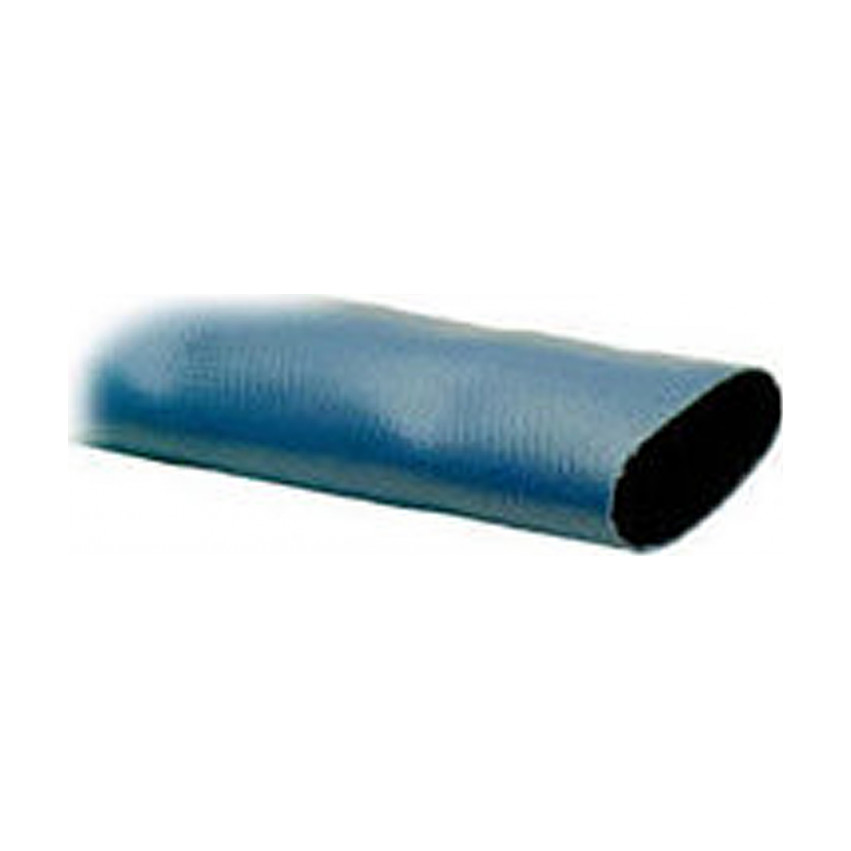

Rollerflex™ DH Water Discharge Hose
Color: Cover – Blue, smooth surface. Tube – black, smooth surface.
Features
- Color: Cover – Blue, smooth surface. Tube – black, smooth surface
- Material: Phthalate Free PVC
- Applications: Water discharge
- Special Features: Lightweight, coils flat for easy handling, transport and storage. Reinforced with two spiral plies and one longitudinal ply of strong fiber for excellent burst resistance, smooth, abuse resistant cover. 3:1 safety factor
- Note: All psi and va. rating are based on an open ended system at ambient temperatures
Product Inquiry
Need pricing on Rollerflex™ DH Water Discharge Hose?
Send us the part numbers and quantities. Our sales team in Elizabeth, NJ will come back to you with pricing and availability.
Frequently asked about Rollerflex™ DH Water Discharge Hose
What is the difference between suction hose and discharge hose?
Suction hose has a rigid helix so it will not collapse under the pump's vacuum; discharge hose only needs to hold pressure and can be lighter. Rollerflex suction series handle both duties.
What sizes are available?
3/4" to 4" I.D. in the standard series, in 100-foot lengths; other lengths are cut to order. 4" is the largest size we run in standard construction — larger sizes are quoted on request.
What fittings do I use?
Barbed or king-nipple fittings with band clamps, or camlock adapters on the larger sizes. Match the fitting to the hose I.D.
Still unsure? 1-800-394-3665 or ask our sales team.
